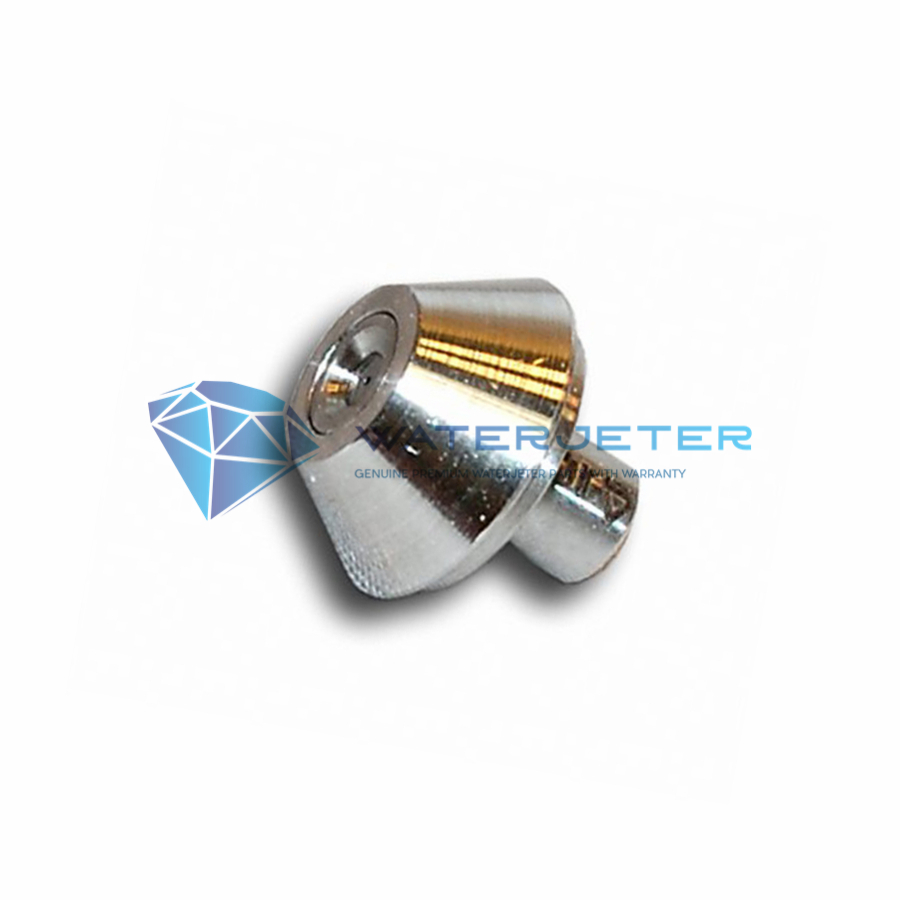

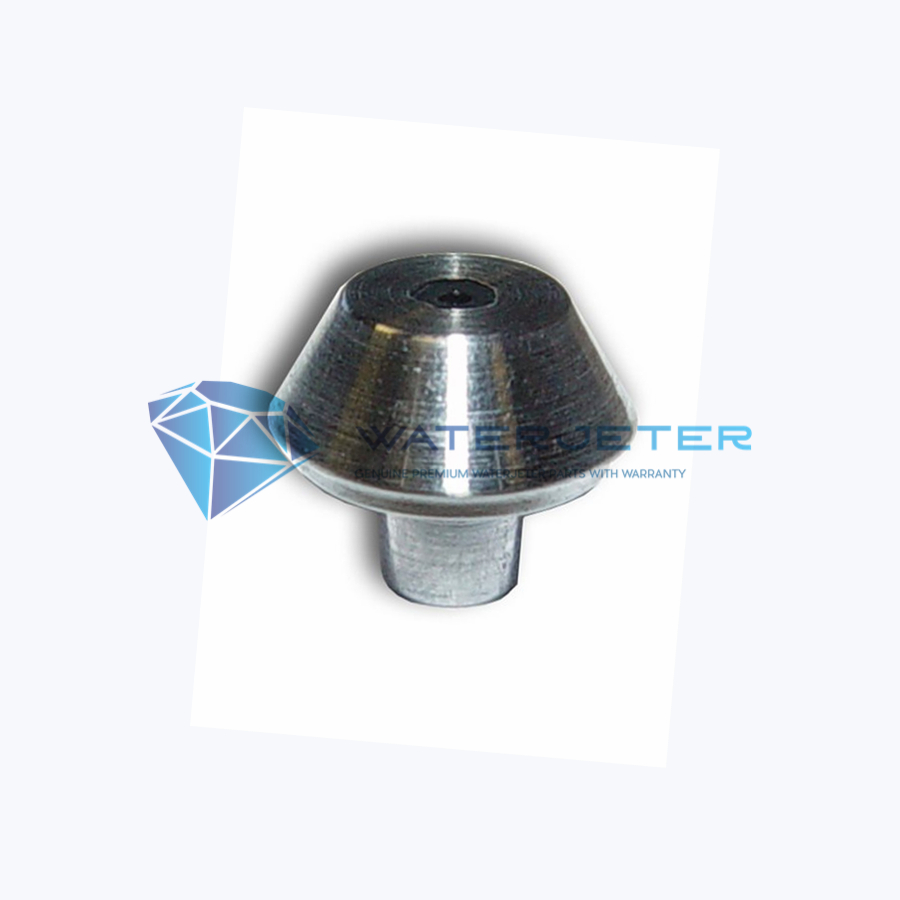

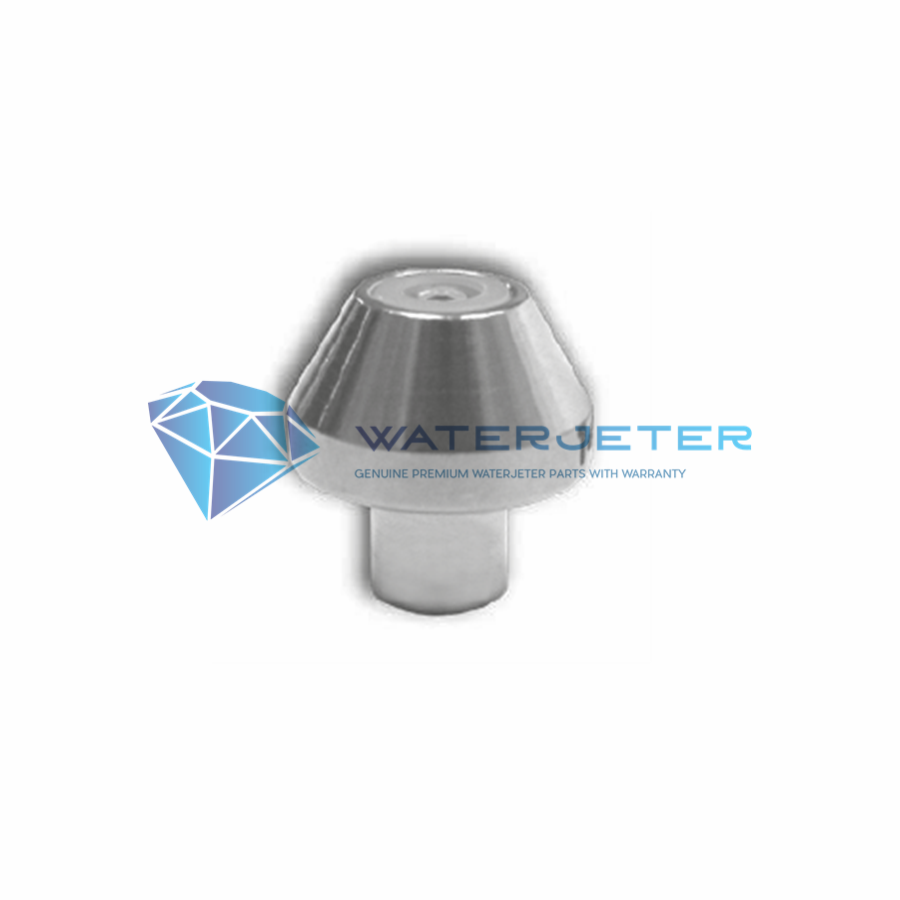

Sapphire Orifice, Autoline 60K, KMT05109079, 7800014

ASK FOR MORE DISCOUNT

其他信息

Material

Premium Sapphire
Grade
Work Pressure

4800bar / 480mpa / 69618psi / 60K
ID inch

0.003''/ 0.004''/ 0.005''/ 0.006''/ 0.007'' … 0.040''/ 0.047''/ 0.051''/ 0.055''
ID mm

0.05/ 0.076/ 0.10/ 0.127/ 0.15/ 0.178 … 0.8/ 1.0/ 1.2/ 1.3/ 1.4mm
Code

WJS 7800003, 7800004, 7800005, 7800014, 7800015, 7800016 …
KMT 05214794, 05222836, 05109079, 80217, 05109087, 80220 …

描述

WATERJETER CODE KMT OEM PART NUMBER WJS OEM Number INNER DIAMETER (inch / mm) SPECIFICATIONS
TRK74S-004 05214794 7800003 0.004 inch 0.102 mm Autoline I&II, 60K
TRK74S-005 05222836 7800004 0.005 inch 0.127 mm Autoline I&II, 60K
TRK74S-006 AL06 7800005 0.006 inch 0.152 mm Autoline I&II, 60K
TRK74S-007 05109079, 80217 7800014 0.007 inch 0.178 mm Autoline I&II, 60K
TRK74S-008 05109087, 80220 7800015 0.008 inch 0.203 mm Autoline I&II, 60K
TRK74S-009 05109095, 80423 7800016 0.009 inch 0.229 mm Autoline I&II, 60K
TRK74S-010 05109103, 0560996690, 80225 7800017 0.010 inch 0.254 mm Autoline I&II, 60K
TRK74S-011 05109111, 80227 – 0.011 inch 0.279 mm Autoline I&II, 60K
TRK74S-012 05109129, 0560996684, 80230 7800019 0.012 inch 0.305 mm Autoline I&II, 60K
TRK74S-013 20412569, 80433 7800049 0.013 inch 0.330 mm Autoline I&II, 60K
TRK74S-014 05109137, 05077037, 80235 7800020 0.014 inch 0.356 mm Autoline I&II, 60K
TRK74S-015 – 0.015 inch 0.381 mm Autoline I&II, 60K
TRK74S-016 20448541 7800021 0.016 inch 0.406 mm Autoline I&II, 60K
TRK74S-018 05114913 7800078 0.018 inch 0.457 mm Autoline I&II, 60K
TRK74S-019 80086671 – 0.019 inch 0.483 mm Autoline I&II, 60K
TRK74S-020 05114921 7800079 0.020 inch 0.508 mm Autoline I&II, 60K

其他信息

Material

Premium Sapphire
Grade
Work Pressure

4800bar / 480mpa / 69618psi / 60K
ID inch

0.003''/ 0.004''/ 0.005''/ 0.006''/ 0.007'' … 0.040''/ 0.047''/ 0.051''/ 0.055''
ID mm

0.05/ 0.076/ 0.10/ 0.127/ 0.15/ 0.178 … 0.8/ 1.0/ 1.2/ 1.3/ 1.4mm
Code

WJS 7800003, 7800004, 7800005, 7800014, 7800015, 7800016 …
KMT 05214794, 05222836, 05109079, 80217, 05109087, 80220 …

评价

目前还没有评价

成为第一个“Sapphire Orifice, Autoline 60K, KMT05109079, 7800014” 的评价者

您的电子邮箱地址不会被公开。 必填项已用*标注

3 + 6 =

Product Details:

WATERJETER CODE KMT OEM PART NUMBER WJS OEM Number INNER DIAMETER (inch / mm) SPECIFICATIONS
TRK74S-004 05214794 7800003 0.004 inch 0.102 mm Autoline I&II, 60K
TRK74S-005 05222836 7800004 0.005 inch 0.127 mm Autoline I&II, 60K
TRK74S-006 AL06 7800005 0.006 inch 0.152 mm Autoline I&II, 60K
TRK74S-007 05109079, 80217 7800014 0.007 inch 0.178 mm Autoline I&II, 60K
TRK74S-008 05109087, 80220 7800015 0.008 inch 0.203 mm Autoline I&II, 60K
TRK74S-009 05109095, 80423 7800016 0.009 inch 0.229 mm Autoline I&II, 60K
TRK74S-010 05109103, 0560996690, 80225 7800017 0.010 inch 0.254 mm Autoline I&II, 60K
TRK74S-011 05109111, 80227 – 0.011 inch 0.279 mm Autoline I&II, 60K
TRK74S-012 05109129, 0560996684, 80230 7800019 0.012 inch 0.305 mm Autoline I&II, 60K
TRK74S-013 20412569, 80433 7800049 0.013 inch 0.330 mm Autoline I&II, 60K
TRK74S-014 05109137, 05077037, 80235 7800020 0.014 inch 0.356 mm Autoline I&II, 60K
TRK74S-015 – 0.015 inch 0.381 mm Autoline I&II, 60K
TRK74S-016 20448541 7800021 0.016 inch 0.406 mm Autoline I&II, 60K
TRK74S-018 05114913 7800078 0.018 inch 0.457 mm Autoline I&II, 60K
TRK74S-019 80086671 – 0.019 inch 0.483 mm Autoline I&II, 60K
TRK74S-020 05114921 7800079 0.020 inch 0.508 mm Autoline I&II, 60K
