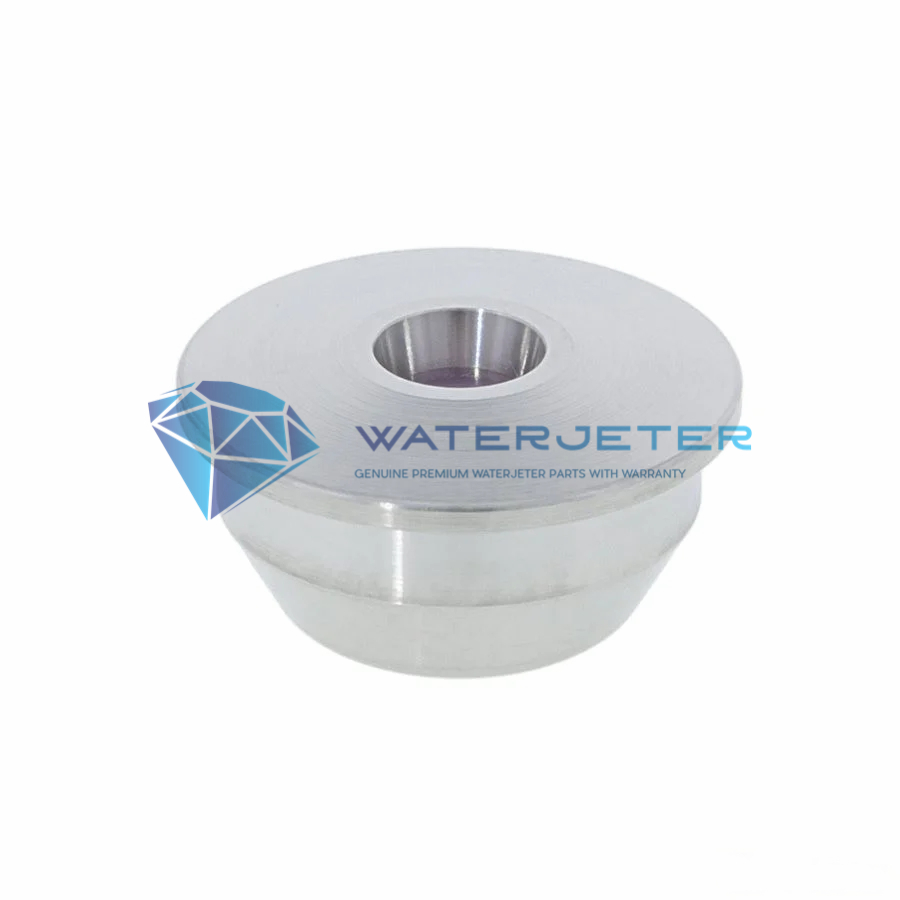

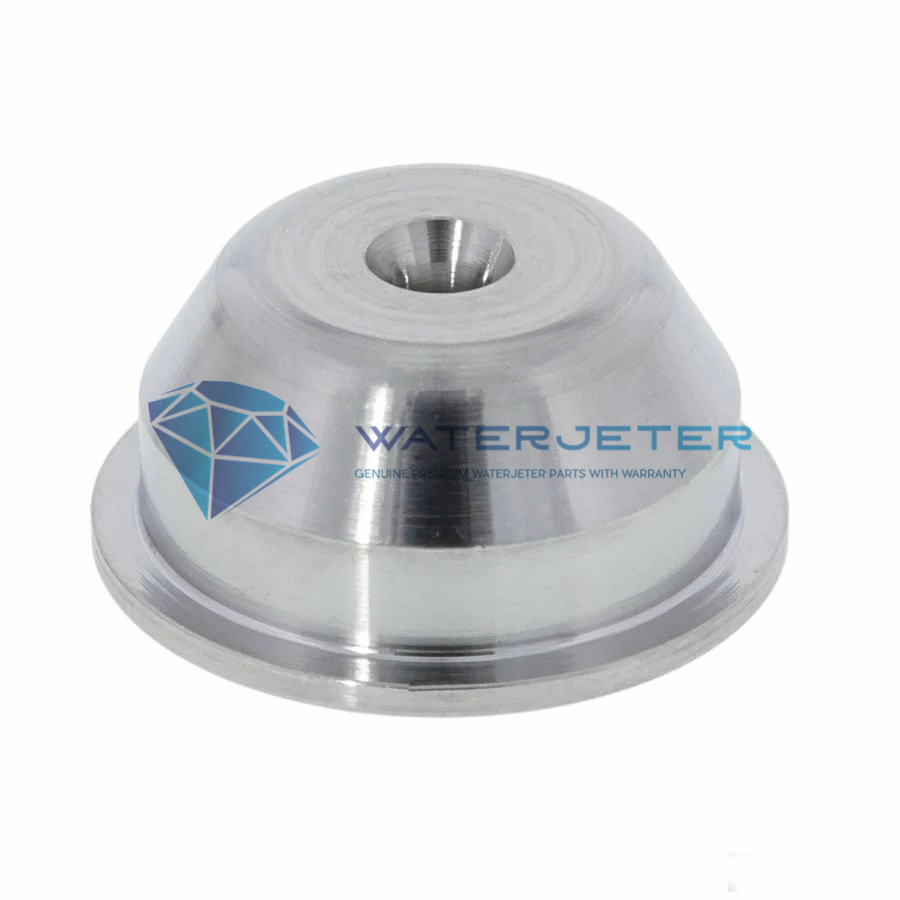

Ruby Orifice Paser ECL, P3, P-V, P5, Flow 014201-7

ASK FOR MORE DISCOUNT

其他信息

Material

Premium Ruby
Grade
Compatibility

Paser ECL, P3, P-V, P5
Work Pressure

60K / 4800bar / 480mpa / 69618psi, 90K / 7000bar / 700mpa / 101526psi
ID inch

0.003''/ 0.004''/ 0.005''/ 0.006''/ 0.007'' … 0.040''/ 0.047''/ 0.051''/ 0.055''
ID mm

0.05/ 0.08/ 0.10/ 0.127/ 0.15/ 0.178 … 0.8/ 1.0/ 1.2/ 1.3/ 1.4mm
Code

FLOW 014201-5, 014201-6, 014201-7, 014201-8 …
KMT 20466200, 20459844, 20459847, 20459850 …
H2O 203940-04, 203940-05, 203940-06, 203940-07 …

描述

Waterjeter Code FLOW Code KMT Code H2O JET Code OTHER NUMBER INNER DIAMETER (inch / mm) SPECIFICATIONS
TFK32R-004 014201-4 203940-04 0.004 inch 0.101 mm Paser ECL, P3, P-V, P5
TFK32R-005 014201-5 203940-05 0.005 inch 0.127 mm Paser ECL, P3, P-V, P5
TFK32R-006 014201-6 20466200 203940-06 0.006 inch 0.152 mm Paser ECL, P3, P-V, P5
TFK32R-007 014201-7 20459844 203940-07 0.007 inch 0.178 mm Paser ECL, P3, P-V, P5
TFK32R-008 014201-8 20459847 203940-08 F300-J3500-R008, F300-J0129-0000 0.008 inch 0.203 mm Paser ECL, P3, P-V, P5
TFK32R-009 014201-9 20459850 203940-09 0.009 inch 0.229 mm Paser ECL, P3, P-V, P5
TFK32R-010 014201-10 20459853 203940-10 F300-J3500-R010 0.010 inch 0.254 mm Paser ECL, P3, P-V, P5
TFK32R-011 014201-11 20466204 203940-11 0.011 inch 0.279 mm Paser ECL, P3, P-V, P5
TFK32R-012 014201-12 20459856 203940-12 F300-J3500-R012 0.012 inch 0.305 mm Paser ECL, P3, P-V, P5
TFK32R-013 014201-13 20459859 203940-13 F300-J3500-R013 0.013 inch 0.330 mm Paser ECL, P3, P-V, P5
TFK32R-014 014201-14 20459862 203940-14 F300-J3500-R014, H203940-14 0.014 inch 0.356 mm Paser ECL, P3, P-V, P5
TFK32R-015 014201-15 20459865 203940-15 0.015 inch 0.381 mm Paser ECL, P3, P-V, P5
TFK32R-016 014201-16 20459868 203940-16 0.016 inch 0.406 mm Paser ECL, P3, P-V, P5
TFK32R-017 014201-17 20466208 203940-17 0.017 inch 0.432 mm Paser ECL, P3, P-V, P5
TFK32R-018 014201-18 20459871 203940-18 0.018 inch 0.457 mm Paser ECL, P3, P-V, P5
TFK32R-019 014201-19 20466217 203940-19 0.019 inch 0.483 mm Paser ECL, P3, P-V, P5
TFK32R-020 014201-20 20466221 203940-20 0.020 inch 0.508 mm Paser ECL, P3, P-V, P5
TFK32R-028 014201-28 203940-28 0.028 inch 0.711 mm Paser ECL, P3, P-V, P5
TFK32R-032 014201-32 203940-32 0.032 inch 0.813 mm Paser ECL, P3, P-V, P5

Ruby Orifice Paser ECL, P3, P-V, P5, Flow014201-7

其他信息

Material

Premium Ruby
Grade
Compatibility

Paser ECL, P3, P-V, P5
Work Pressure

60K / 4800bar / 480mpa / 69618psi, 90K / 7000bar / 700mpa / 101526psi
ID inch

0.003''/ 0.004''/ 0.005''/ 0.006''/ 0.007'' … 0.040''/ 0.047''/ 0.051''/ 0.055''
ID mm

0.05/ 0.08/ 0.10/ 0.127/ 0.15/ 0.178 … 0.8/ 1.0/ 1.2/ 1.3/ 1.4mm
Code

FLOW 014201-5, 014201-6, 014201-7, 014201-8 …
KMT 20466200, 20459844, 20459847, 20459850 …
H2O 203940-04, 203940-05, 203940-06, 203940-07 …

评价

目前还没有评价

成为第一个“Ruby Orifice Paser ECL, P3, P-V, P5, Flow 014201-7” 的评价者

您的电子邮箱地址不会被公开。 必填项已用*标注

12 − 8 =

Product Details:

Waterjeter Code FLOW Code KMT Code H2O JET Code OTHER NUMBER INNER DIAMETER (inch / mm) SPECIFICATIONS
TFK32R-004 014201-4 203940-04 0.004 inch 0.101 mm Paser ECL, P3, P-V, P5
TFK32R-005 014201-5 203940-05 0.005 inch 0.127 mm Paser ECL, P3, P-V, P5
TFK32R-006 014201-6 20466200 203940-06 0.006 inch 0.152 mm Paser ECL, P3, P-V, P5
TFK32R-007 014201-7 20459844 203940-07 0.007 inch 0.178 mm Paser ECL, P3, P-V, P5
TFK32R-008 014201-8 20459847 203940-08 F300-J3500-R008, F300-J0129-0000 0.008 inch 0.203 mm Paser ECL, P3, P-V, P5
TFK32R-009 014201-9 20459850 203940-09 0.009 inch 0.229 mm Paser ECL, P3, P-V, P5
TFK32R-010 014201-10 20459853 203940-10 F300-J3500-R010 0.010 inch 0.254 mm Paser ECL, P3, P-V, P5
TFK32R-011 014201-11 20466204 203940-11 0.011 inch 0.279 mm Paser ECL, P3, P-V, P5
TFK32R-012 014201-12 20459856 203940-12 F300-J3500-R012 0.012 inch 0.305 mm Paser ECL, P3, P-V, P5
TFK32R-013 014201-13 20459859 203940-13 F300-J3500-R013 0.013 inch 0.330 mm Paser ECL, P3, P-V, P5
TFK32R-014 014201-14 20459862 203940-14 F300-J3500-R014, H203940-14 0.014 inch 0.356 mm Paser ECL, P3, P-V, P5
TFK32R-015 014201-15 20459865 203940-15 0.015 inch 0.381 mm Paser ECL, P3, P-V, P5
TFK32R-016 014201-16 20459868 203940-16 0.016 inch 0.406 mm Paser ECL, P3, P-V, P5
TFK32R-017 014201-17 20466208 203940-17 0.017 inch 0.432 mm Paser ECL, P3, P-V, P5
TFK32R-018 014201-18 20459871 203940-18 0.018 inch 0.457 mm Paser ECL, P3, P-V, P5
TFK32R-019 014201-19 20466217 203940-19 0.019 inch 0.483 mm Paser ECL, P3, P-V, P5
TFK32R-020 014201-20 20466221 203940-20 0.020 inch 0.508 mm Paser ECL, P3, P-V, P5
TFK32R-028 014201-28 203940-28 0.028 inch 0.711 mm Paser ECL, P3, P-V, P5
TFK32R-032 014201-32 203940-32 0.032 inch 0.813 mm Paser ECL, P3, P-V, P5

Ruby Orifice Paser ECL, P3, P-V, P5, Flow014201-7
