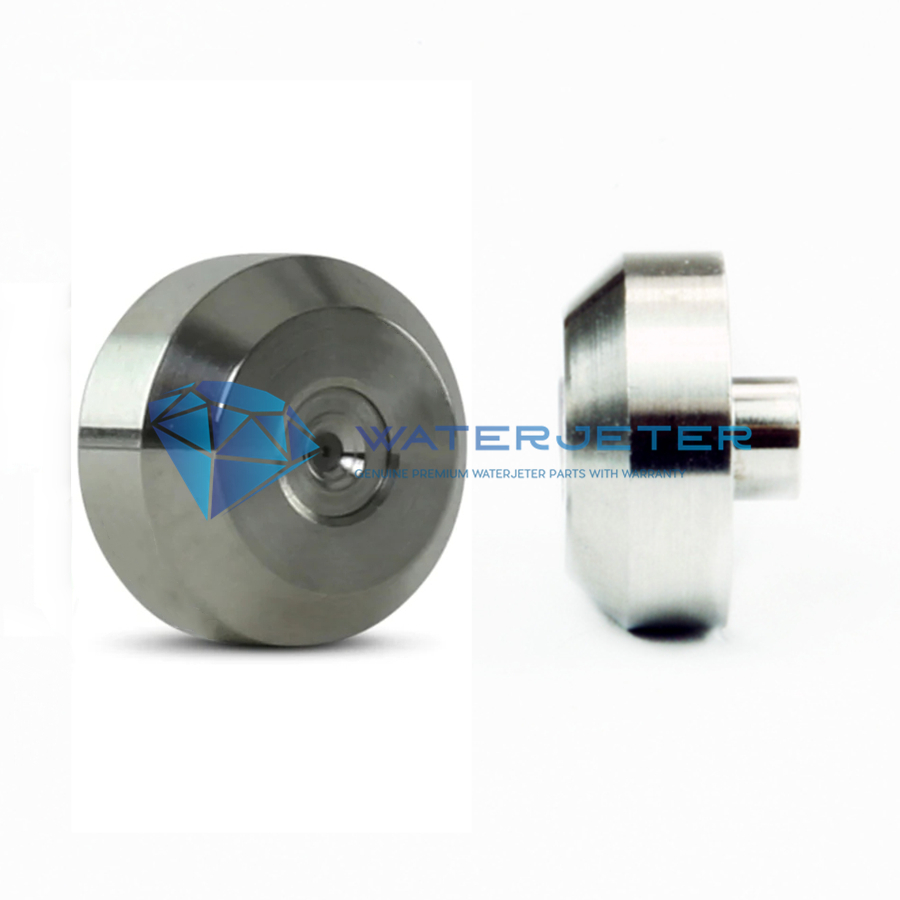

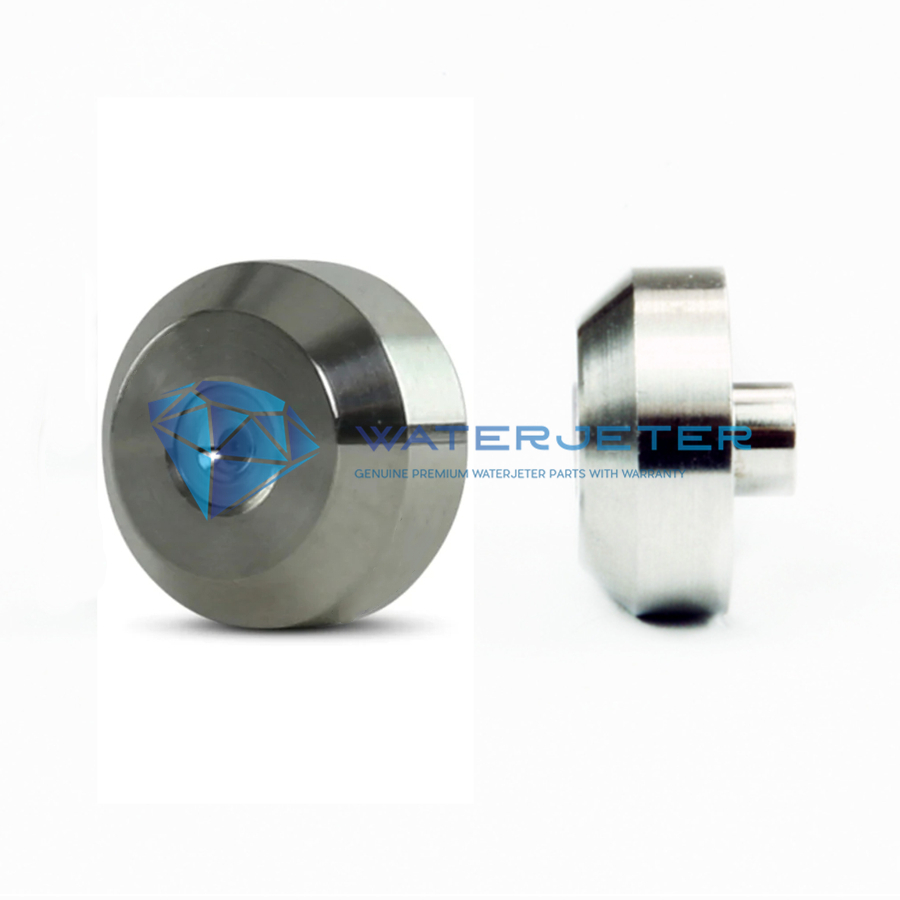

Diamond Orifice Standard, FLOW D-5071-7, KMT 20459886

ASK FOR MORE DISCOUNT

其他信息

Material

Premium Diamond
Grade
Compatibility

Standard Mount
Work Pressure

60K / 4800bar / 480mpa / 69618psi, 90K / 7000bar / 700mpa / 101526psi
ID inch

0.003''/ 0.004''/ 0.005''/ 0.006''/ 0.007'' … 0.040''/ 0.047''/ 0.051''/ 0.055''
ID mm

0.05/ 0.08/ 0.10/ 0.127/ 0.15/ 0.178 … 0.8/ 1.0/ 1.2/ 1.3/ 1.4mm
Code

FLOW D-5071-3, D-5071-4, D-5071-5, D-5071-6, D-5071-7 …
KMT 20459874, 20459877, 20459880, 20459883, 20459886 …
H2O JET 201101-03, 201101-04, 201101-05, 201101-06 …
ACCU 1-11238D-003, 1-11238D-004, 1-11238D-005 …

描述

Waterjeter No. FLOW No. KMT No. H2O JET No. Accustream No. Inner Diameter (inch / mm) Specification
TFK33D-003 D-5071-3 20459874 201101-03 1-11238D-003 0.003 inch 0.08 mm Standard Mount
TFK33D-004 D-5071-4 20459877 201101-04 1-11238D-004 0.004 inch 0.10 mm Standard Mount
TFK33D-005 D-5071-5 20459880 201101-05 1-11238D-005 0.005 inch 0.12 mm Standard Mount
TFK33D-006 D-5071-6 20459883 201101-06 1-11238D-006 0.006 inch 0.15 mm Standard Mount
TFK33D-007 D-5071-7 20459886 201101-07 1-11238D-007 0.007 inch 0.17 mm Standard Mount
TFK33D-008 D-5071-8 20459889 201101-08 1-11238D-008 0.008 inch 0.20 mm Standard Mount
TFK33D-009 D-5071-9 20459892 201101-09 1-11238D-009 0.009 inch 0.23 mm Standard Mount
TFK33D-010 D-5071-10 20459895 201101-10 1-11238D-010 0.010 inch 0.25 mm Standard Mount
TFK33D-011 D-5071-11 20459898 201101-11 1-11238D-011 0.011 inch 0.28 mm Standard Mount
TFK33D-012 D-5071-12 20459901 201101-12 1-11238D-012 0.012 inch 0.30 mm Standard Mount
TFK33D-013 D-5071-13 20465770 201101-13 1-11238D-013 0.013 inch 0.33 mm Standard Mount
TFK33D-014 D-5071-14 20465787 201101-14 1-11238D-014 0.014 inch 0.35 mm Standard Mount
TFK33D-015 D-5071-15 20465791 201101-15 1-11238D-015 0.015 inch 0.38 mm Standard Mount
TFK33D-016 D-5071-16 20465795 201101-16 1-11238D-016 0.016 inch 0.40 mm Standard Mount
TFK33D-017 D-5071-17 20465799 201101-17 1-11238D-017 0.017 inch 0.43 mm Standard Mount
TFK33D-018 D-5071-18 20465803 201101-18 1-11238D-018 0.018 inch 0.45 mm Standard Mount
TFK33D-019 D-5071-19 20465820 201101-19 1-11238D-019 0.019 inch 0.48 mm Standard Mount
TFK33D-020 D-5071-20 20465824 201101-20 1-11238D-020 0.020 inch 0.51 mm Standard Mount
TFK33D-021 D-5071-21 201101-21 1-11238D-021 0.021 inch 0.53 mm Standard Mount
TFK33D-022 D-5071-22 201101-22 1-11238D-022 0.022 inch 0.55 mm Standard Mount
TFK33D-023 D-5071-23 201101-23 1-11238D-023 0.023 inch 0.58 mm Standard Mount
TFK33D-024 D-5071-24 201101-24 1-11238D-024 0.024 inch 0.61 mm Standard Mount
TFK33D-026 D-5071-26 201101-26 1-11238D-026 0.026 inch 0.66 mm Standard Mount
TFK33D-028 D-5071-28 201101-28 1-11238D-028 0.028 inch 0.71 mm Standard Mount
TFK33D-030 D-5071-30 201101-30 1-11238D-030 0.030 inch 0.76 mm Standard Mount
TFK33D-032 D-5071-32 201101-32 1-11238D-032 0.032 inch 0.81 mm Standard Mount
TFK33D-040 D-5071-40 201101-40 1-11238D-040 0.040 inch 1.02 mm Standard Mount

Diamond Orifice Standard Mount, FLOW D-5071-7, KMT 20459886, H2O JET 201101-07.

其他信息

Material

Premium Diamond
Grade
Compatibility

Standard Mount
Work Pressure

60K / 4800bar / 480mpa / 69618psi, 90K / 7000bar / 700mpa / 101526psi
ID inch

0.003''/ 0.004''/ 0.005''/ 0.006''/ 0.007'' … 0.040''/ 0.047''/ 0.051''/ 0.055''
ID mm

0.05/ 0.08/ 0.10/ 0.127/ 0.15/ 0.178 … 0.8/ 1.0/ 1.2/ 1.3/ 1.4mm
Code

FLOW D-5071-3, D-5071-4, D-5071-5, D-5071-6, D-5071-7 …
KMT 20459874, 20459877, 20459880, 20459883, 20459886 …
H2O JET 201101-03, 201101-04, 201101-05, 201101-06 …
ACCU 1-11238D-003, 1-11238D-004, 1-11238D-005 …

评价

目前还没有评价

成为第一个“Diamond Orifice Standard, FLOW D-5071-7, KMT 20459886” 的评价者

您的电子邮箱地址不会被公开。 必填项已用*标注

5 − 3 =

Product Details:

Waterjeter No. FLOW No. KMT No. H2O JET No. Accustream No. Inner Diameter (inch / mm) Specification
TFK33D-003 D-5071-3 20459874 201101-03 1-11238D-003 0.003 inch 0.08 mm Standard Mount
TFK33D-004 D-5071-4 20459877 201101-04 1-11238D-004 0.004 inch 0.10 mm Standard Mount
TFK33D-005 D-5071-5 20459880 201101-05 1-11238D-005 0.005 inch 0.12 mm Standard Mount
TFK33D-006 D-5071-6 20459883 201101-06 1-11238D-006 0.006 inch 0.15 mm Standard Mount
TFK33D-007 D-5071-7 20459886 201101-07 1-11238D-007 0.007 inch 0.17 mm Standard Mount
TFK33D-008 D-5071-8 20459889 201101-08 1-11238D-008 0.008 inch 0.20 mm Standard Mount
TFK33D-009 D-5071-9 20459892 201101-09 1-11238D-009 0.009 inch 0.23 mm Standard Mount
TFK33D-010 D-5071-10 20459895 201101-10 1-11238D-010 0.010 inch 0.25 mm Standard Mount
TFK33D-011 D-5071-11 20459898 201101-11 1-11238D-011 0.011 inch 0.28 mm Standard Mount
TFK33D-012 D-5071-12 20459901 201101-12 1-11238D-012 0.012 inch 0.30 mm Standard Mount
TFK33D-013 D-5071-13 20465770 201101-13 1-11238D-013 0.013 inch 0.33 mm Standard Mount
TFK33D-014 D-5071-14 20465787 201101-14 1-11238D-014 0.014 inch 0.35 mm Standard Mount
TFK33D-015 D-5071-15 20465791 201101-15 1-11238D-015 0.015 inch 0.38 mm Standard Mount
TFK33D-016 D-5071-16 20465795 201101-16 1-11238D-016 0.016 inch 0.40 mm Standard Mount
TFK33D-017 D-5071-17 20465799 201101-17 1-11238D-017 0.017 inch 0.43 mm Standard Mount
TFK33D-018 D-5071-18 20465803 201101-18 1-11238D-018 0.018 inch 0.45 mm Standard Mount
TFK33D-019 D-5071-19 20465820 201101-19 1-11238D-019 0.019 inch 0.48 mm Standard Mount
TFK33D-020 D-5071-20 20465824 201101-20 1-11238D-020 0.020 inch 0.51 mm Standard Mount
TFK33D-021 D-5071-21 201101-21 1-11238D-021 0.021 inch 0.53 mm Standard Mount
TFK33D-022 D-5071-22 201101-22 1-11238D-022 0.022 inch 0.55 mm Standard Mount
TFK33D-023 D-5071-23 201101-23 1-11238D-023 0.023 inch 0.58 mm Standard Mount
TFK33D-024 D-5071-24 201101-24 1-11238D-024 0.024 inch 0.61 mm Standard Mount
TFK33D-026 D-5071-26 201101-26 1-11238D-026 0.026 inch 0.66 mm Standard Mount
TFK33D-028 D-5071-28 201101-28 1-11238D-028 0.028 inch 0.71 mm Standard Mount
TFK33D-030 D-5071-30 201101-30 1-11238D-030 0.030 inch 0.76 mm Standard Mount
TFK33D-032 D-5071-32 201101-32 1-11238D-032 0.032 inch 0.81 mm Standard Mount
TFK33D-040 D-5071-40 201101-40 1-11238D-040 0.040 inch 1.02 mm Standard Mount

Diamond Orifice Standard Mount, FLOW D-5071-7, KMT 20459886, H2O JET 201101-07.
